Examining Table Structure
The structure view provides the metadata you need before editing data, writing SQL, or configuring a stream.

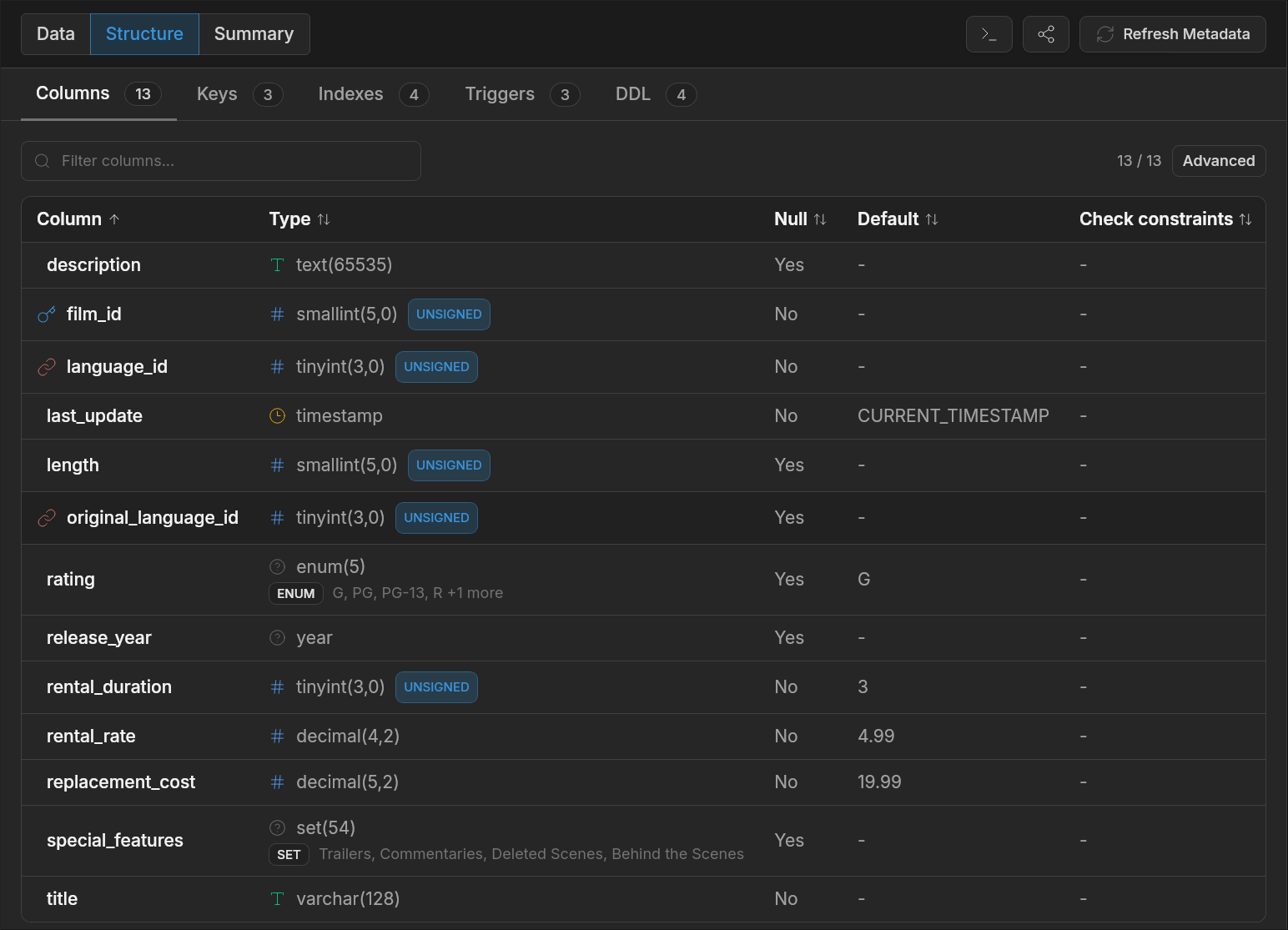

Columns tab
The Columns tab shows the detailed shape of the selected object.
Typical fields include:
- name
- data type
- length or enum values where applicable
- default value
- nullability
- auto-increment behavior
- comments when available

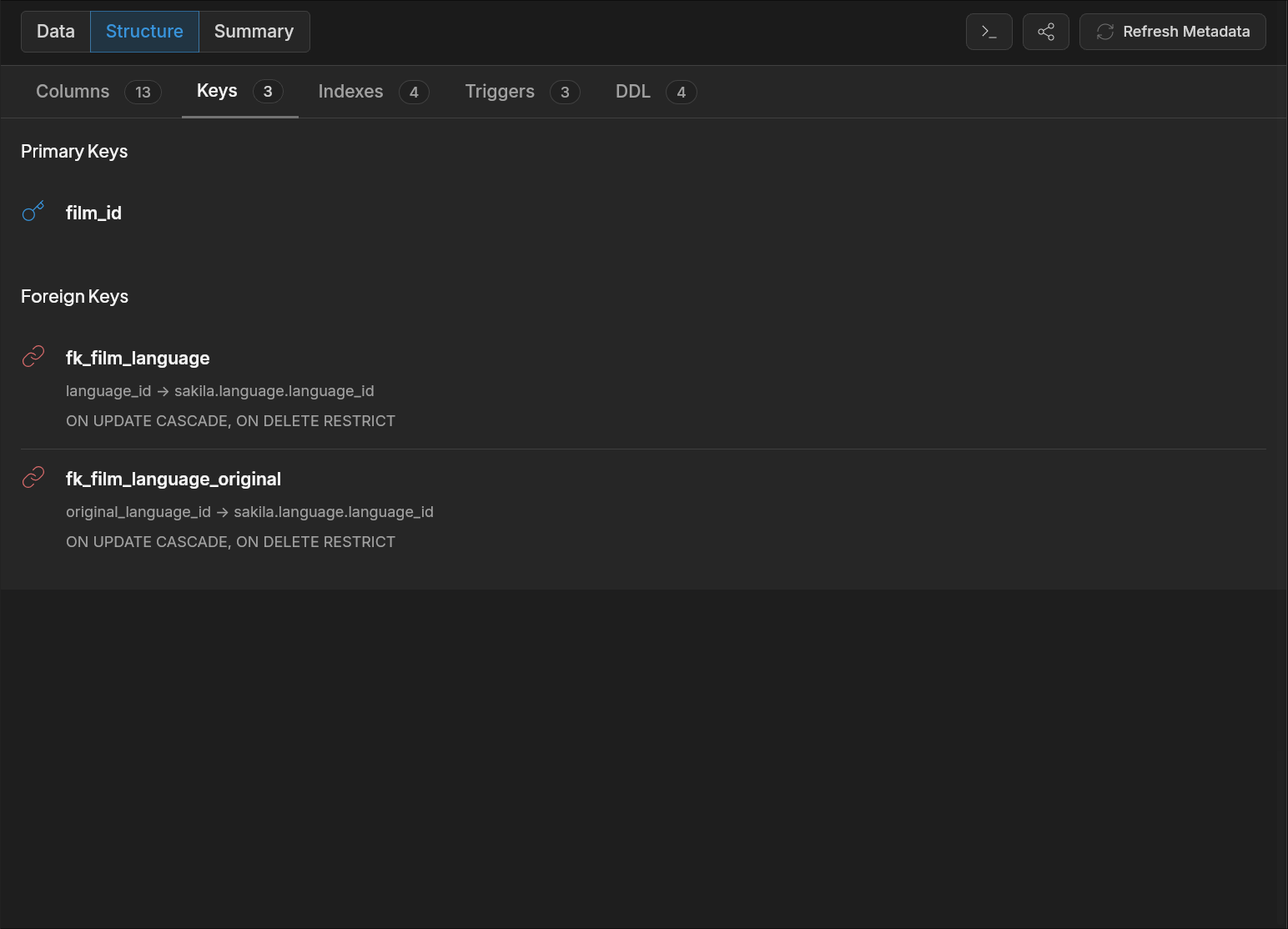

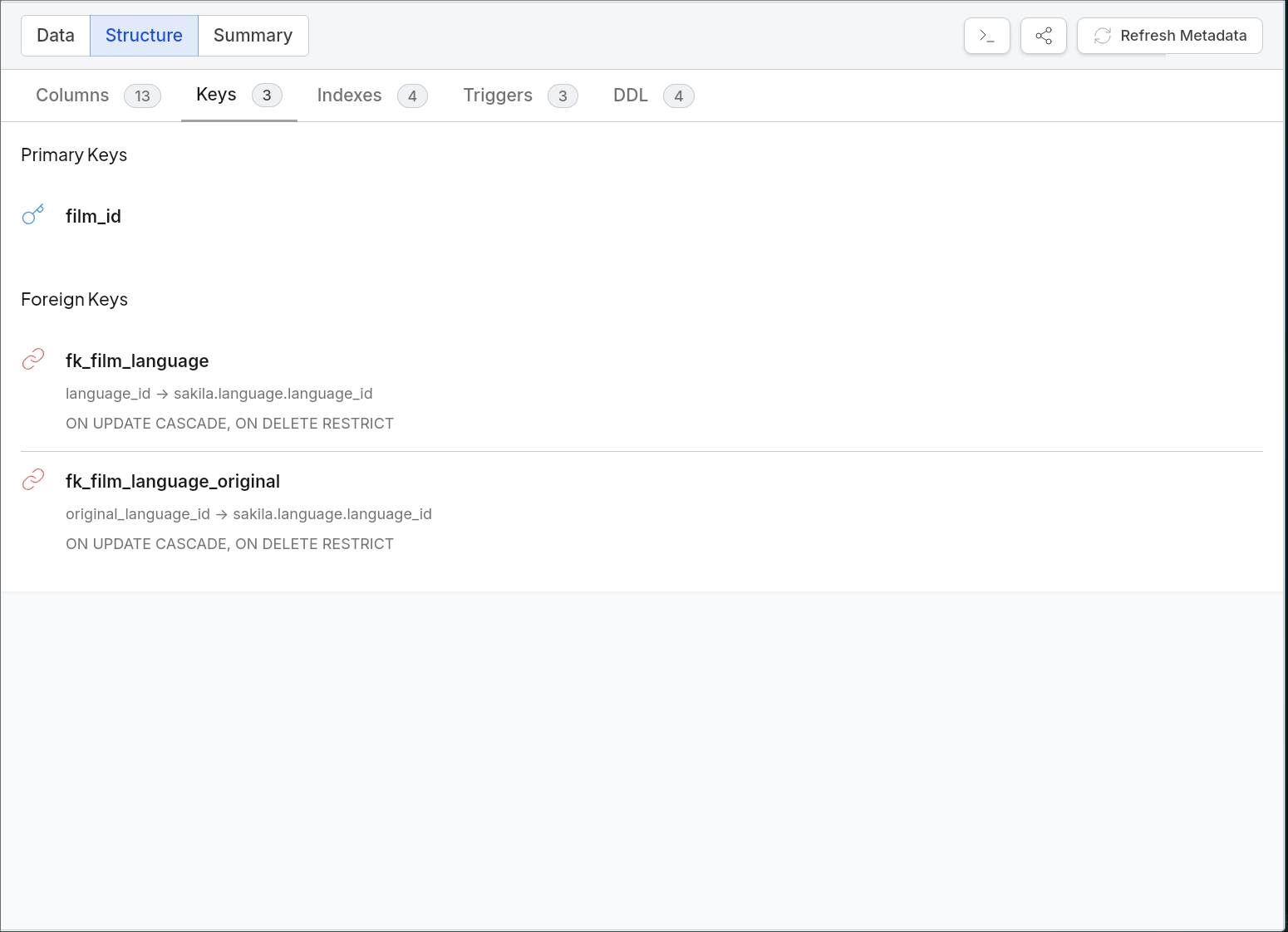

Keys tab
The Keys tab surfaces relationship-critical metadata.
This includes:
- primary keys
- foreign keys
- unique constraints
- referenced tables and actions where the engine exposes them

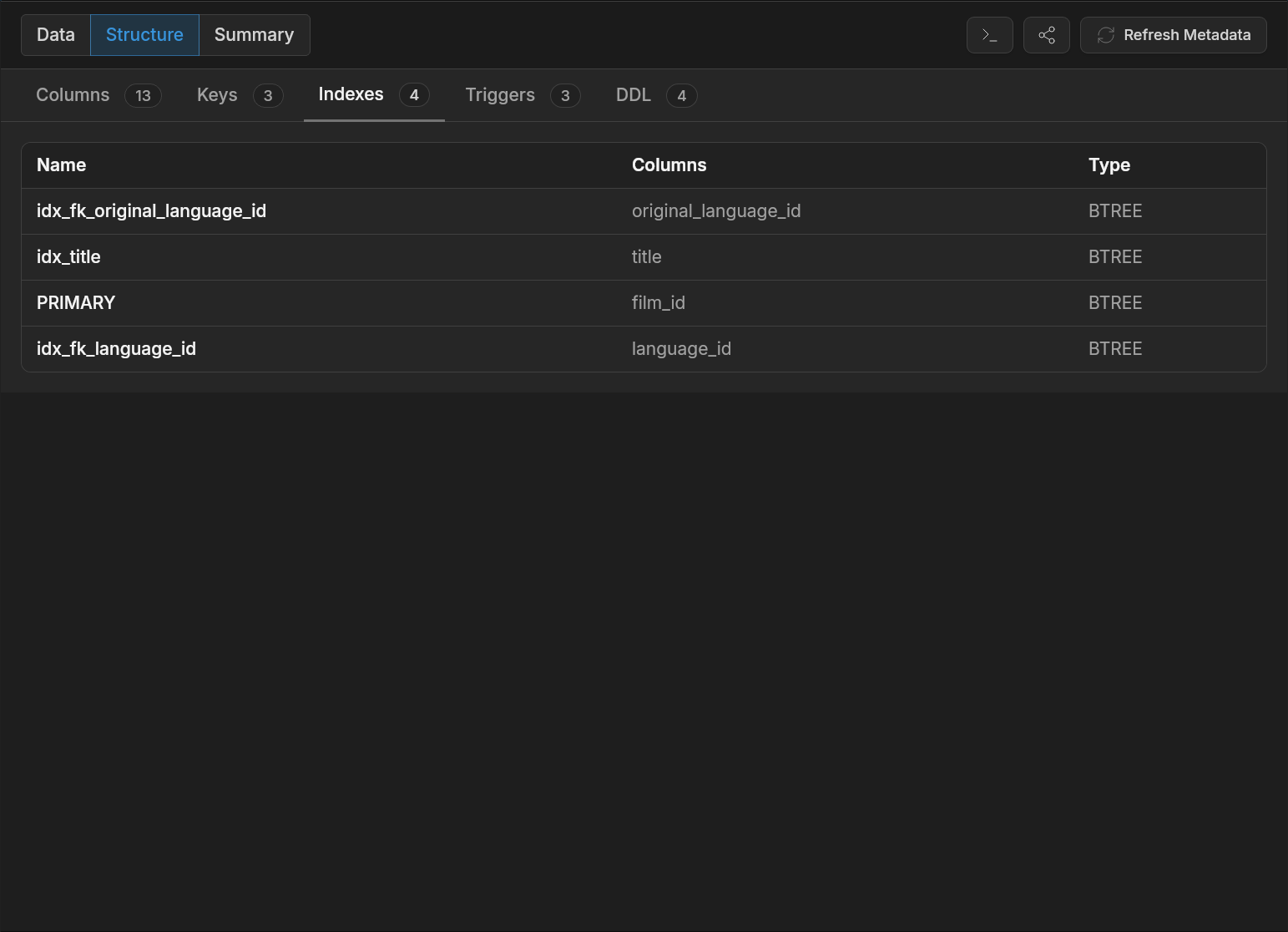

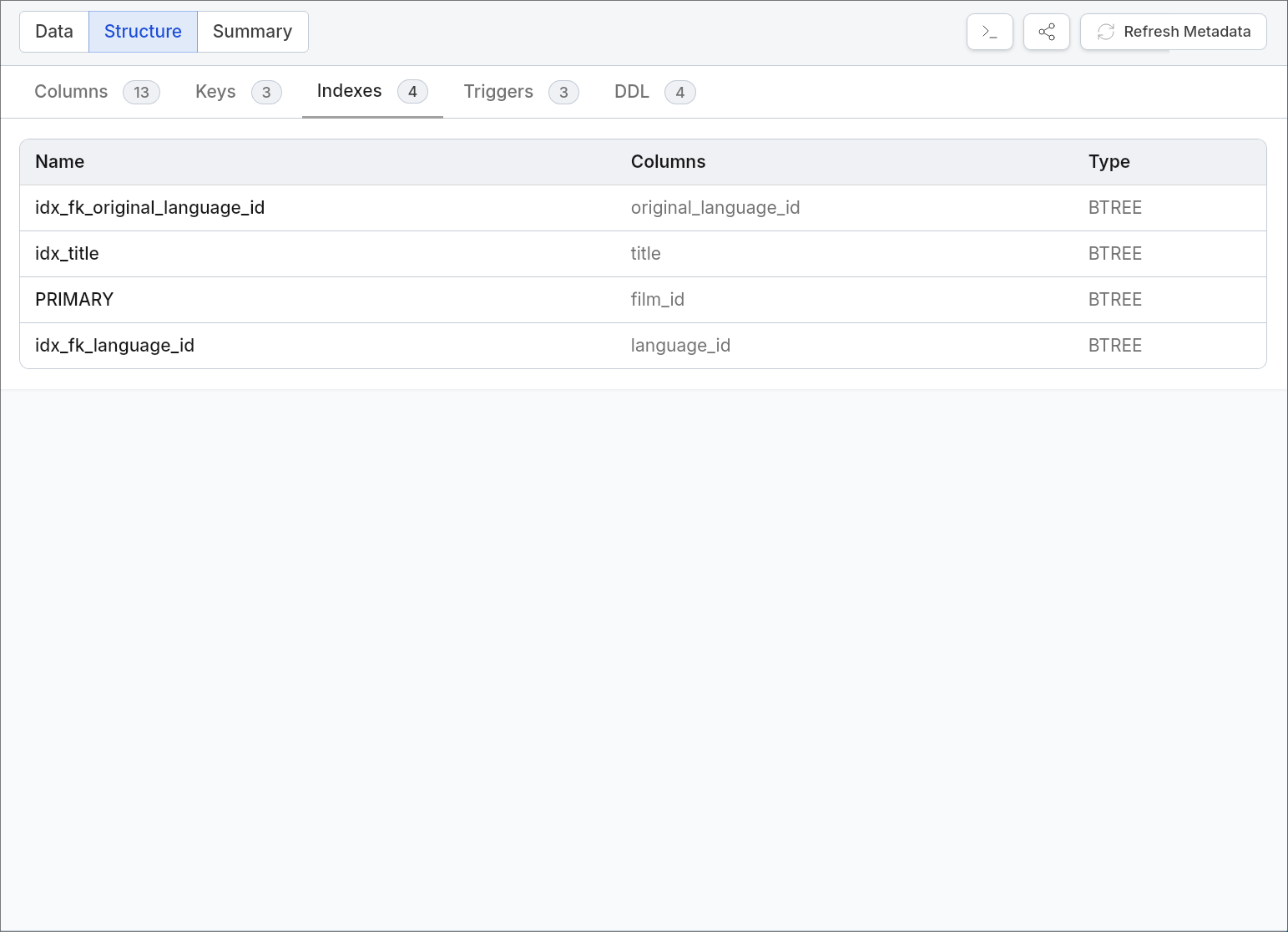

Indexes tab
The Indexes tab helps explain access patterns and tuning assumptions.
You can review:
- index name
- index type
- uniqueness
- indexed columns and sort direction
- additional metadata returned by the engine

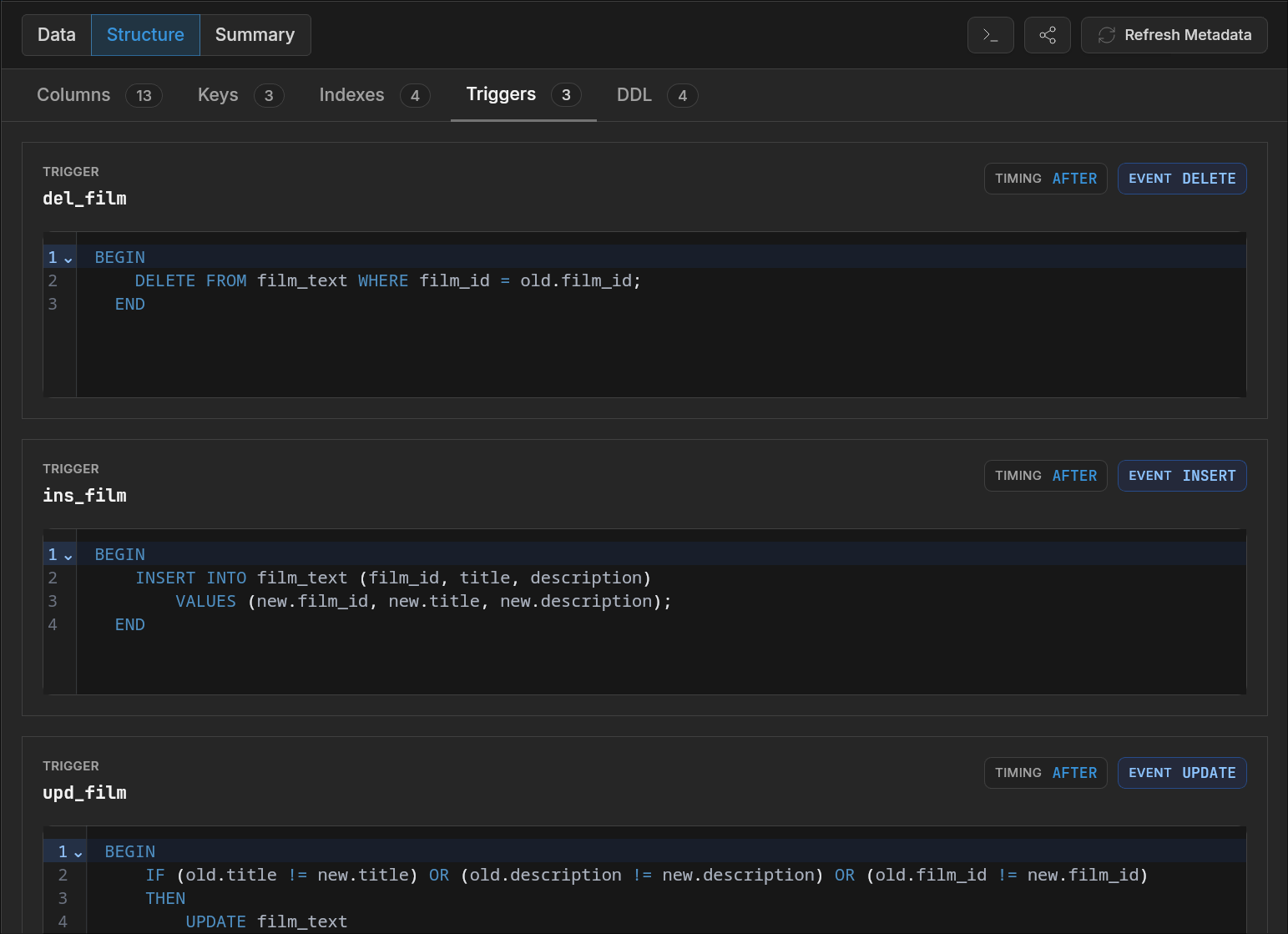

Triggers tab
The Triggers tab lists triggers defined on the selected table.
Each trigger shows:
- trigger name
- timing (BEFORE / AFTER) and event (INSERT / UPDATE / DELETE)
- trigger body with syntax highlighting

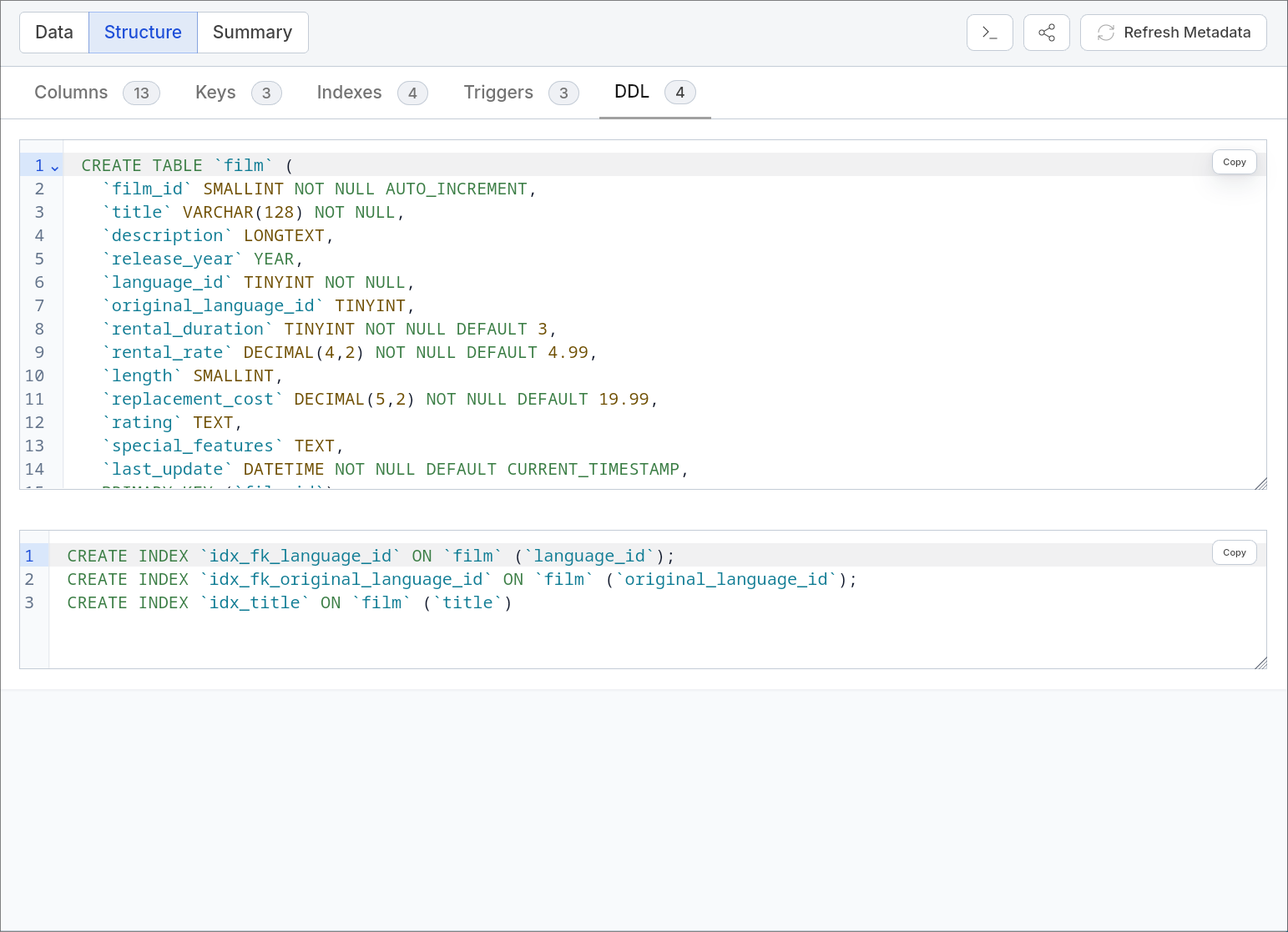

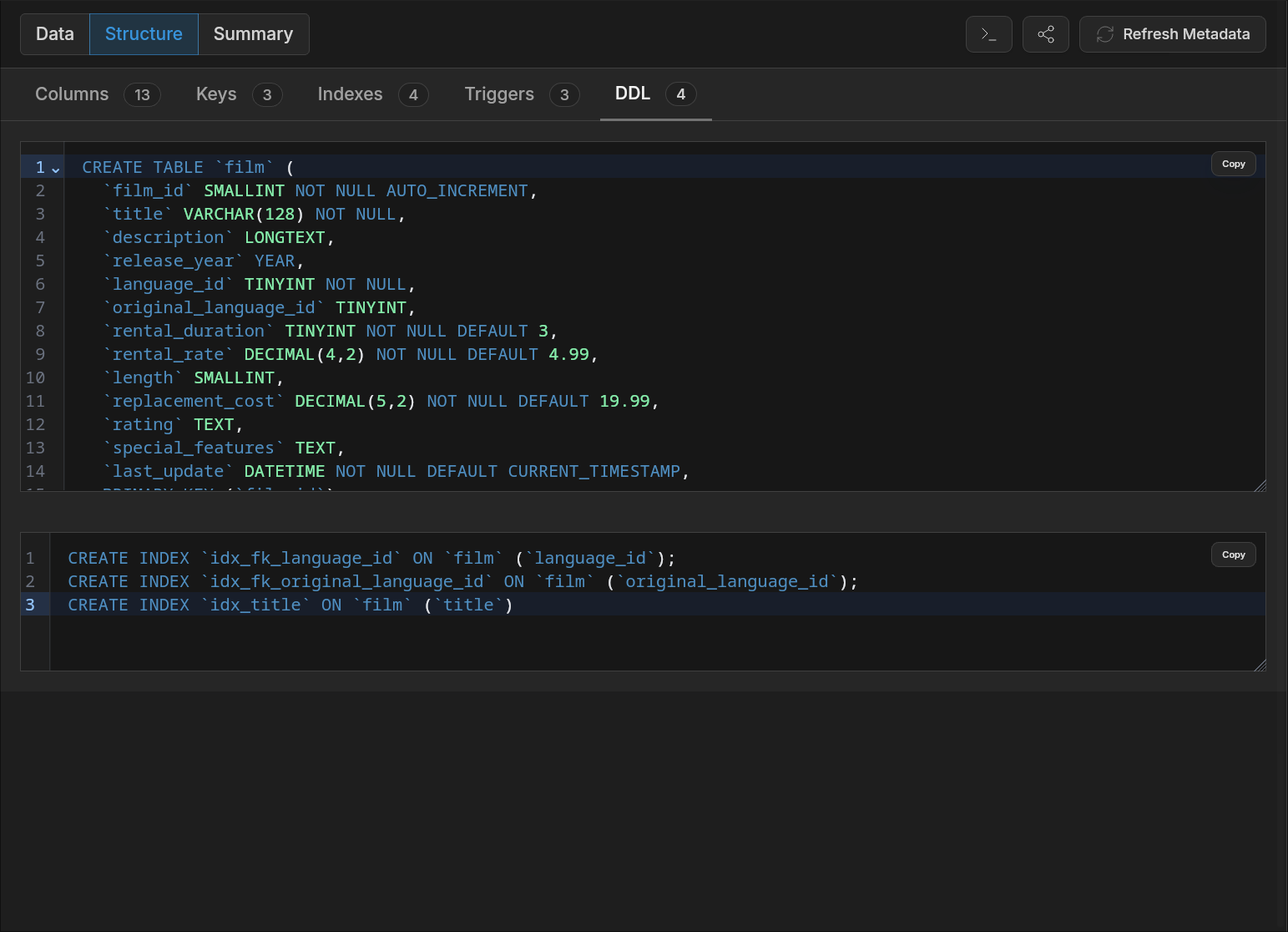

DDL tab
The DDL tab shows the SQL definition retrieved for the selected object.
Use it to:
- validate the exact source definition before migration work
- capture schema details for tickets or reviews
- compare source and target structure expectations
- copy the definition into external tooling when needed

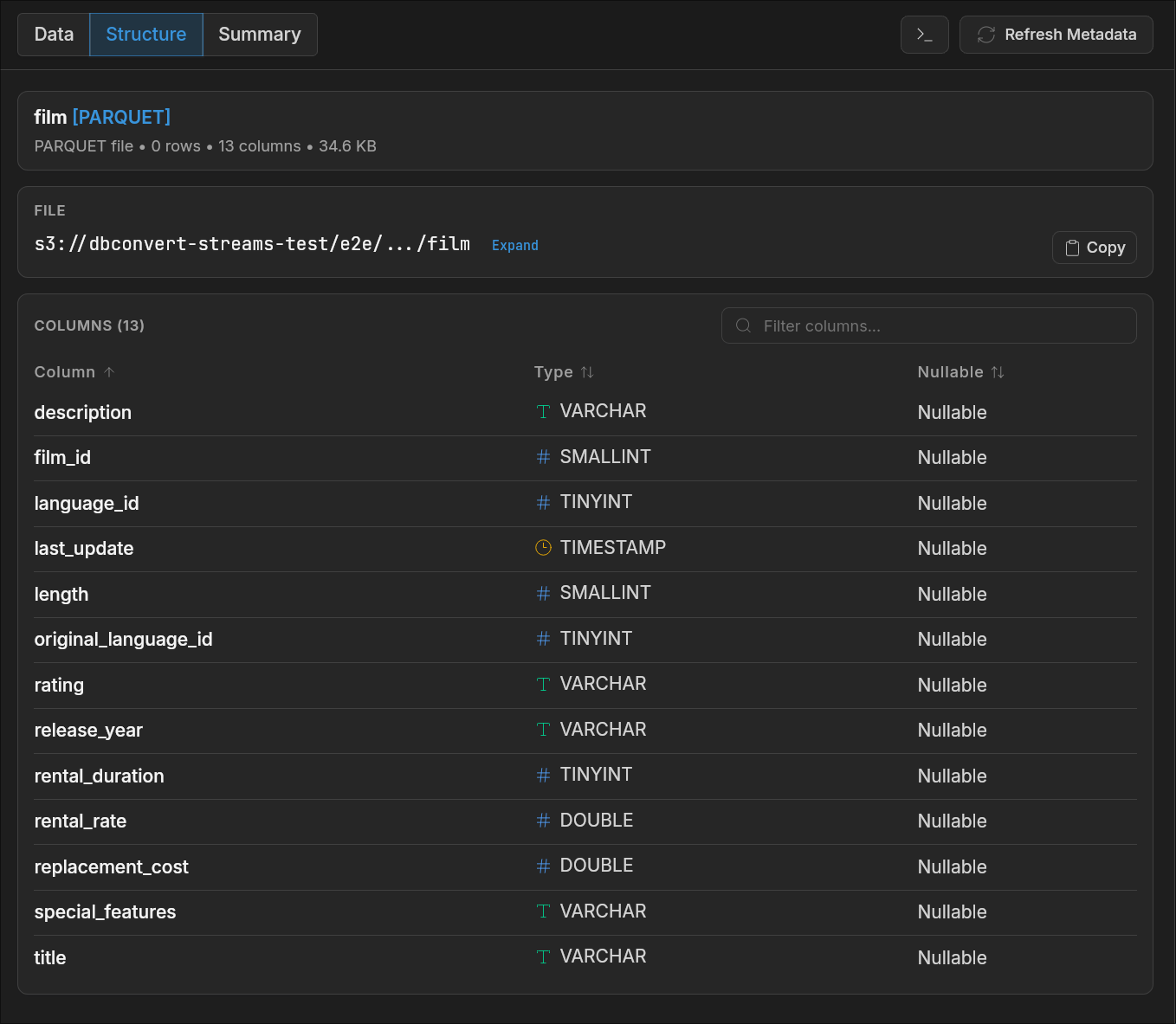

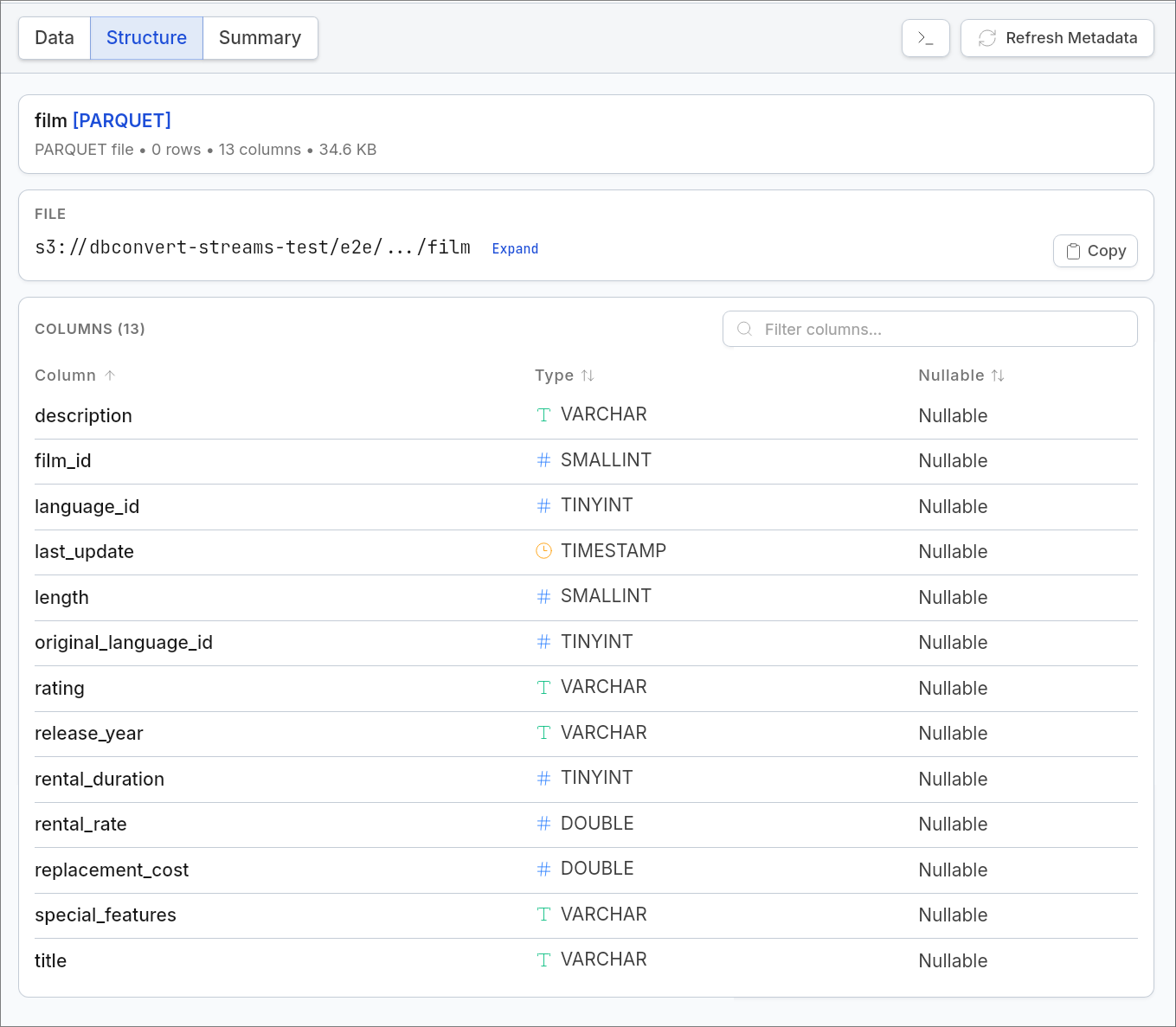

File and S3 structure
When viewing a file-backed table (local files or S3), the Structure tab adapts to show file-specific metadata instead of database-specific tabs.
File info
The top of the Structure view shows:
- Format badge — file format (e.g., PARQUET, CSV, JSON)
- Row and column counts — total rows and number of columns
- File size — size on disk
- File path — full path with Copy and Reveal in Folder buttons (local files only)
Columns
File structure shows a simplified column list:
| Field | Description |
|---|---|
| Column | Column name |
| Type | Inferred data type |
| Nullable | Whether the column allows null values |
Keys, Indexes, and DDL tabs are not shown for file-backed tables.
